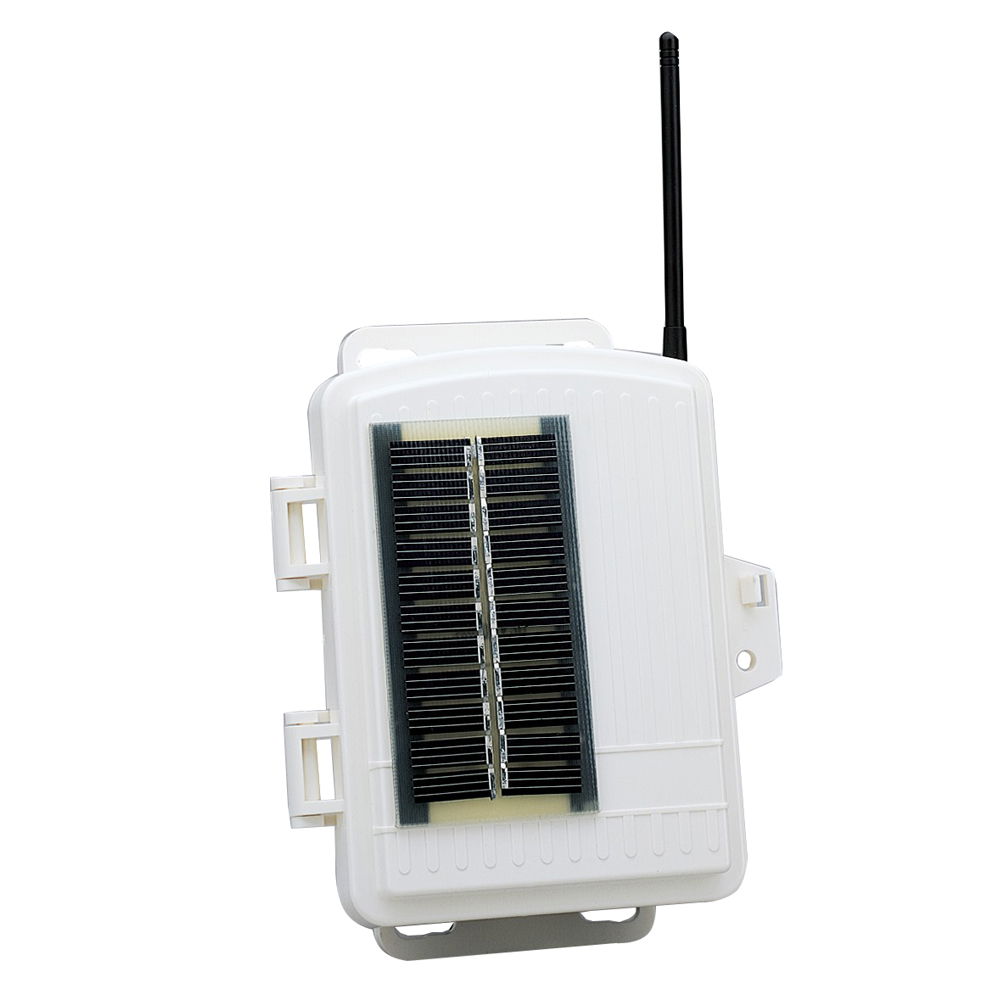

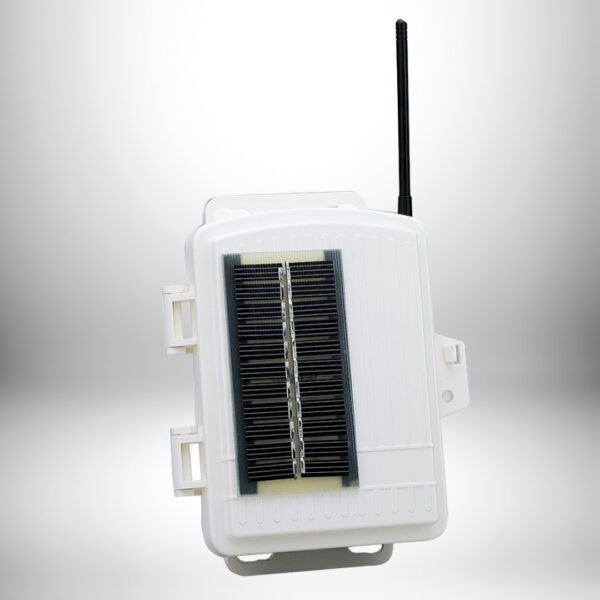

Davis Wireless Repeater with Solar Power (7627)

For longer distances or to improve reception in challenging areas, consider adding the Davis Wireless Repeater with Solar Power. The transmitting and receiving range for each repeater is up to 1000′ (300 meters) outdoors, line of sight; the typical range through walls under most conditions is 200′ to 400′ (60 to 120 meters). Includes solar panel, regulator circuit, and rechargeable battery.

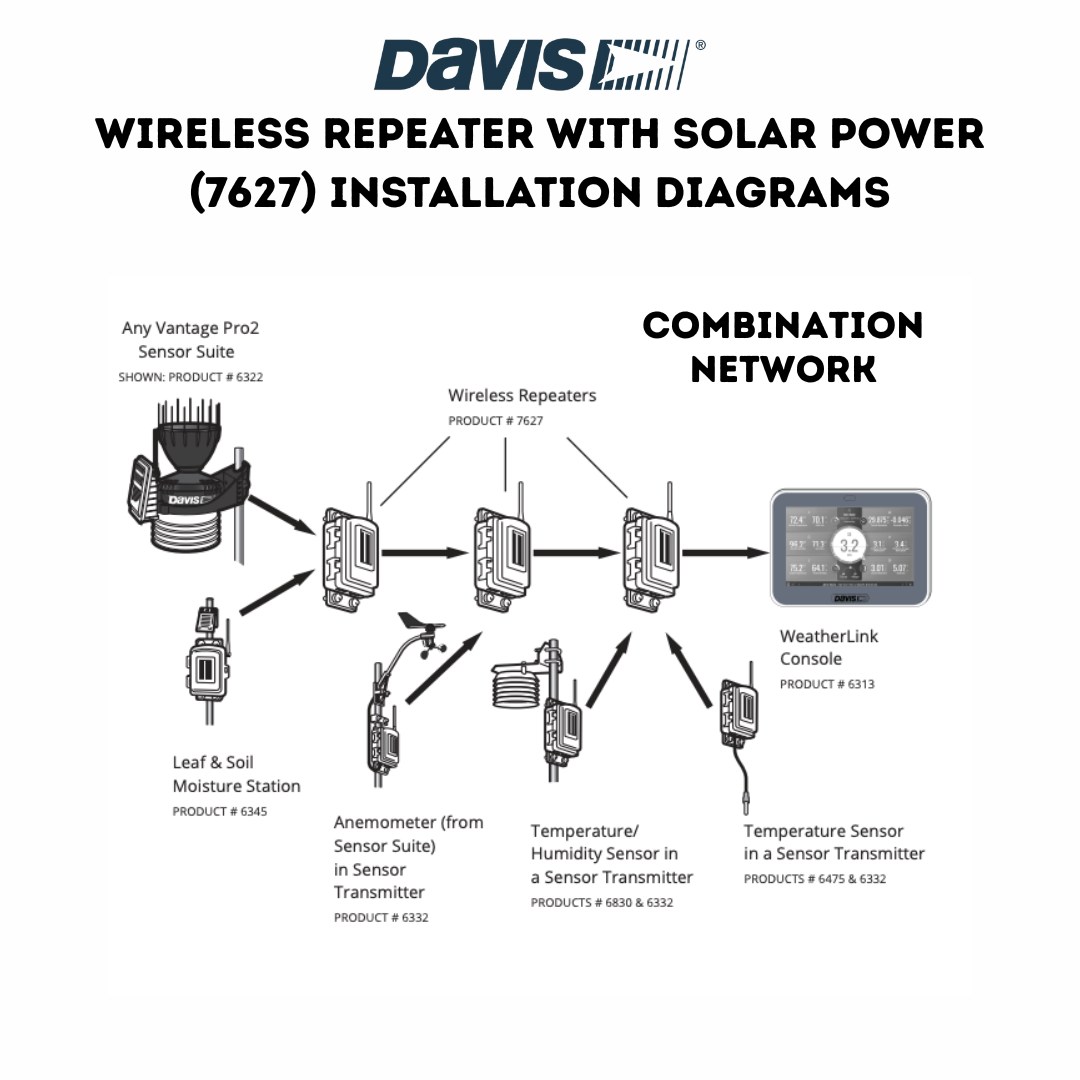

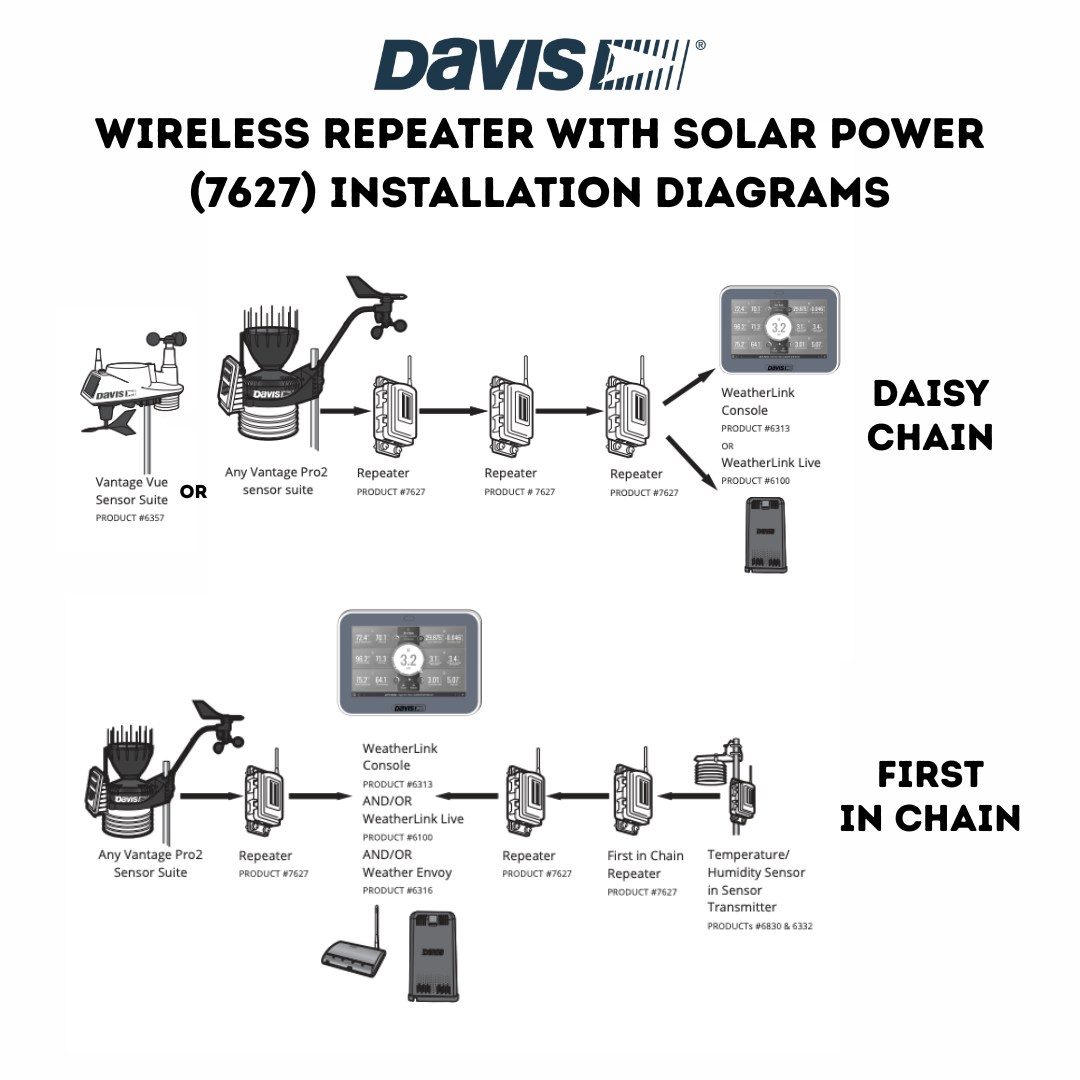

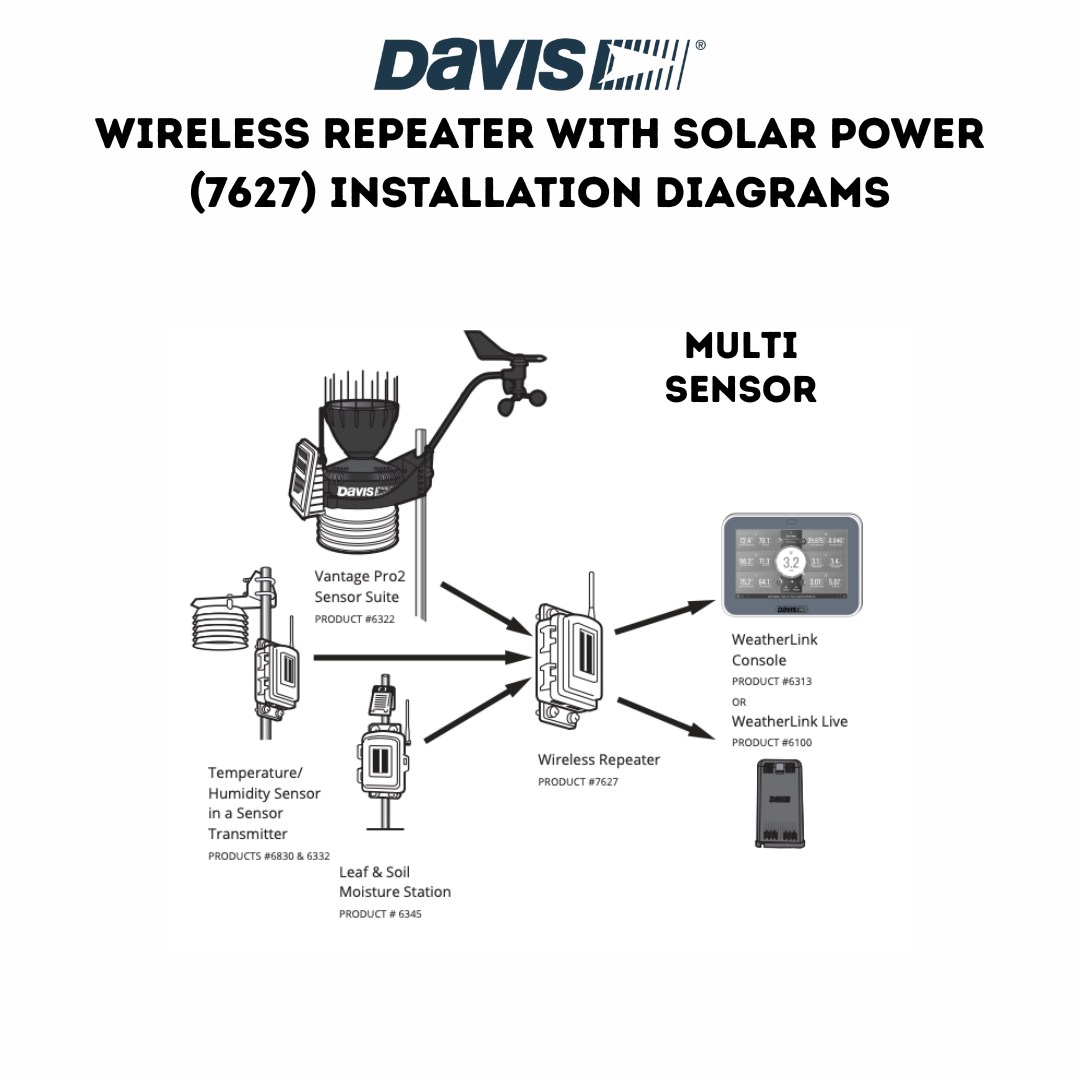

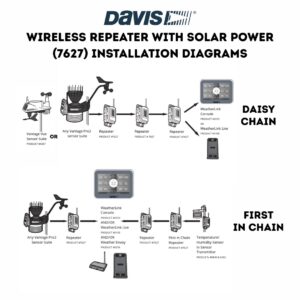

Use up to eight repeaters with a single wireless station, or form a network of weather stations by linking eight repeaters to eight different wireless stations. Multiple sensors can connect to a single wireless repeater (see images for examples).

The Davis Wireless Repeater is compatible with the Vantage Pro2 and Vantage Vue weather stations. It is not compatible with the original Vantage Pro (produced before 2006).

Features:

• The solar-powered charging system is capable of performing continuously even under low-light conditions.
• The backup battery’s expected life is over two years with normal solar input.
• Includes solar panel, regulator circuit, rechargeable battery, and mounting hardware.
• Requires two antennas (Omni, or Yagi, sold separately): One for receiving a station or wireless repeater. One for transmitting to another repeater or receiver.

Files

• Davis Wireless Repeater with Solar Power (7627) User Manual
• Spec Sheet
• Cirrusly Weather: Navigating Complex Installs
