Davis Daytime Fan Aspirated Radiation Shield Kit (7747)
Add daytime fan aspiration to either the original Vantage Pro or Vantage Pro2 or Pro2 Plus with the Davis Daytime Fan Aspirated Radiation Shield Kit.
Learn moreShips within 1-2 days
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Shipping rates are provided as a convenience for our international shoppers. Orders shipped within the Lower 48 over $60 qualify for free shipping.
About the Davis Daytime Fan Aspirated Radiation Shield Kit (7747)
The Davis Daytime Fan Aspirated Radiation Shield Kit adds the benefits of fan aspiration to your wireless or cabled Vantage Pro2 or Pro2 Plus. Half the cost of Davis’ 24-hour fan aspirated radiation shield, but nearly 75% as effective in reducing the effects of daytime radiation. Solar-powered fan runs during the day. Since there is no backup battery, the fan will cease running when night falls, and the effects of radiation will be less severe.

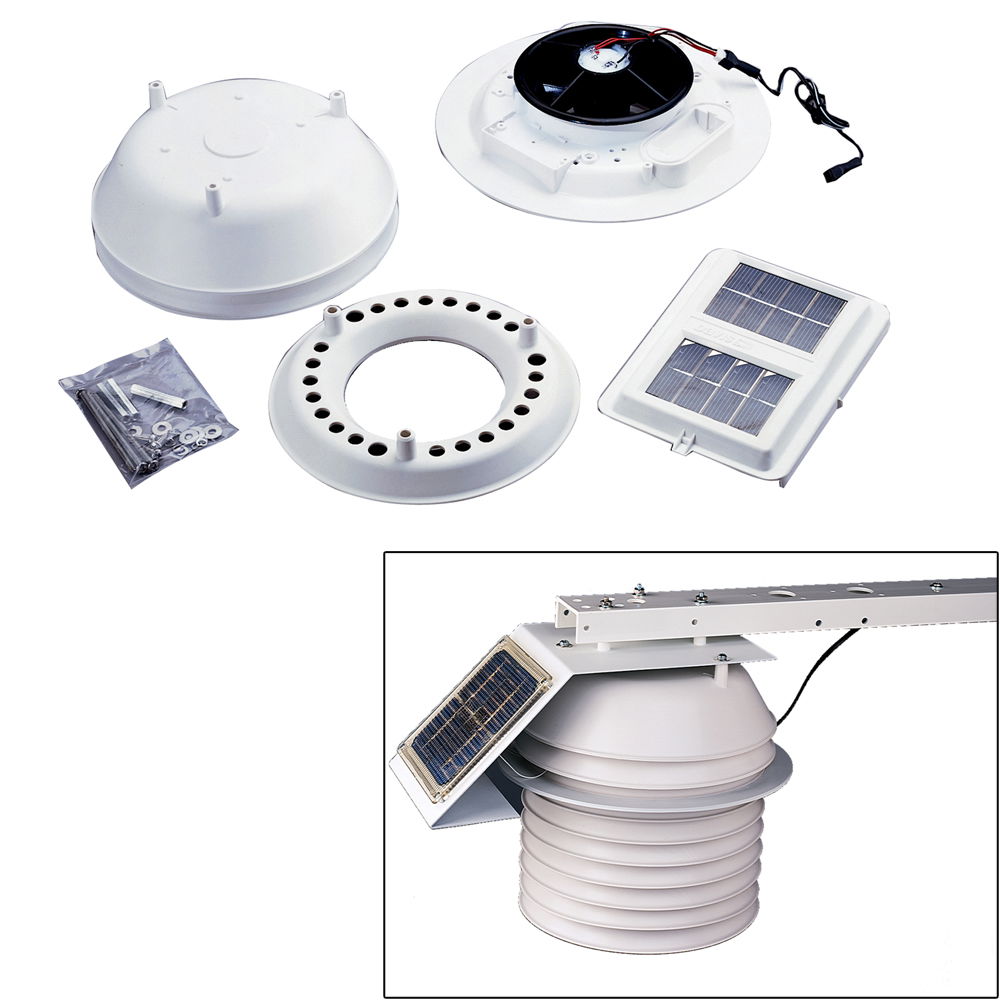

The kit includes a fan, a solar panel, additional radiation shield plates, and hardware. It is not compatible with the Davis Vantage Vue Integrated Sensor Suite. Deciding on whether or not to opt for fan aspiration in your setup? See our blog post for our recommendations.
FAQ
What models are the Davis Daytime Fan Aspirated Radiation Shield Kit compatible with?
This kit is compatible with the Davis Vantage Pro and Vantage Pro2 models (non-aspirated).
Is fan aspiration necessary?
In our tests, fan aspiration has resulted in as much as a 2-3F difference in reported temperature. If accuracy is a concern, fan aspiration is strongly recommended.
Is nighttime fan aspiration necessary?
While Davis does have a kit to add the same 24-hour fan aspiration as found in the Vantage Pro2 Plus, it is prohibitively expensive. The Davis Daytime Fan Aspirated Radiation Shield Kit only runs during the day, when the effects are the most pronounced.
Files

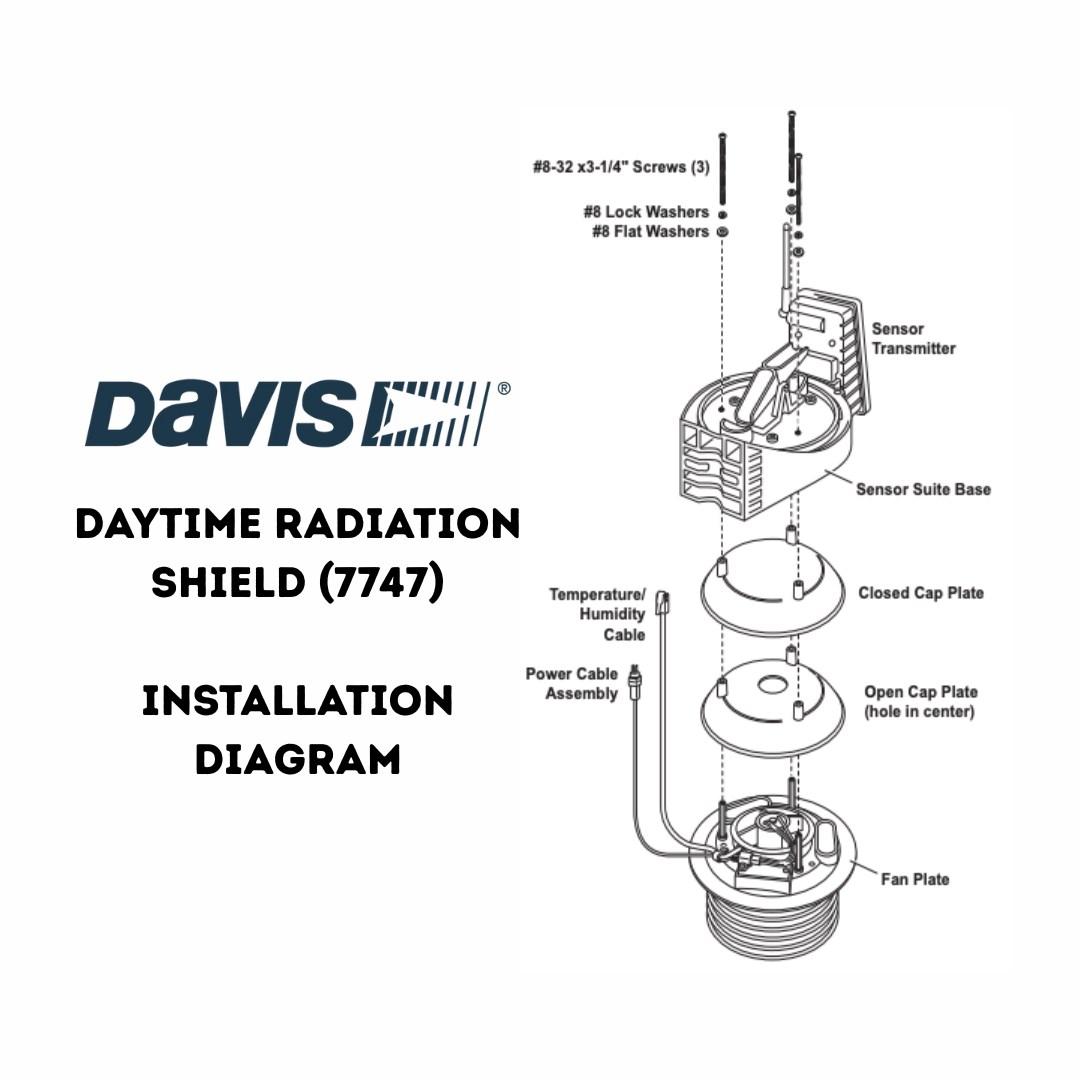

- Instructions for the Davis Daytime Fan Aspirated Radiation Shield Kit (7747)
- Spec Sheet
- Davis Application Note #24 (11/17/1999): Comparison of Solar Heating in Five Radiation Shields (7755 was similar in design to today’s 7747)
Product Specs
Additional Information
| Attributes | Value |
|---|---|
| Weight | 2.6 lbs |
| Dimensions | 12 × 10 × 7 in |
| Country of Origin |
UNITED STATES |
| Measurements and Features |
Fan Aspirated |
| Compatible With |
Davis Vantage Pro2, Davis Vantage Pro2 Plus |
| Power |
Solar |
Dimensions and weight provided are for shipping purposes and not of the product itself.
